Product Details:
|
| Name: | ADAS Camera Lens | Sensor Size: | φ6.94（1/2.7") |
|---|---|---|---|
| Specification: | HK-8244B-1042-1 | Wavelength: | λ 400-700nm（Color) |
| F/NO (Infinite): | F/NO 2.0 | Field Of View (Diagonal): | D 160°H 120°V 60° |
| Optical Distortion (Diagonal): | ＜-78% | Thread Size: | M12 * P0.5 |
| Element: | 6G + IR | ||
| High Light: | 3.0mm ADAS Camera Lens,M12xP0.5 ADAS Camera Lens,High Definition M12 Mount Lens |
||

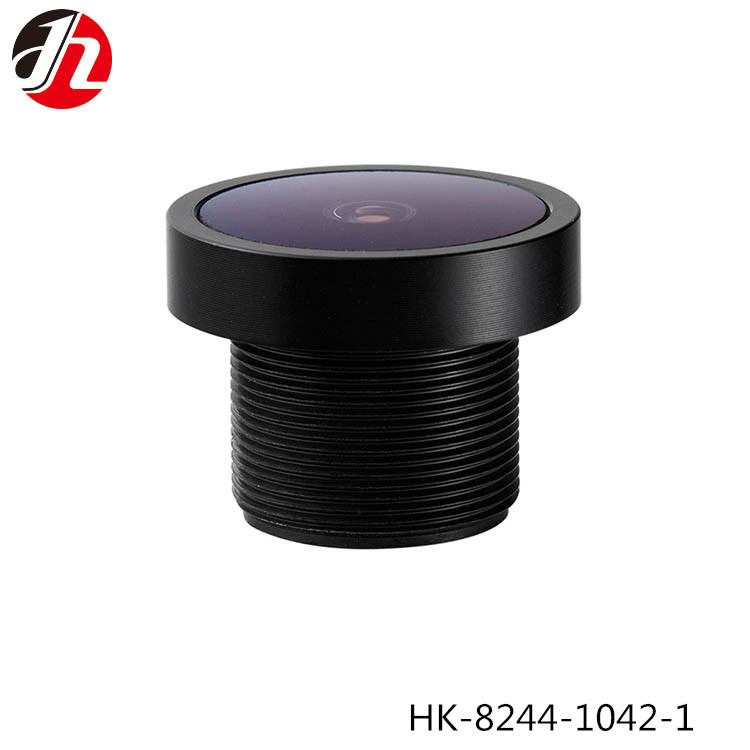

ADAS Camera Lens HK-8244 Driving Recorder Lens Smart Auxiliary Drive 3D 360 Aerial Panoramic View
Product features
1. Car rear view lens with waterproof and wide angle lens.
2. 360° panoramic surveillance CCTV camera lens.
3. High definition lenses with optical filter.
4. Can be used in multiple field
Product Details
| SPECIFICATION: | HK-8244B-1042-1 |
| Sensor size | φ6.94(1/2.7") |
| WAVELENGTH | λ 400-700nm(COLOR) |
| FOCAL LENGTH (EFL) | f 3.0 mm |
| F/NO (INFINITE) | F/NO 2.0 |
| BACK FOCAL LENGTH | BFL 6.04 mm |
| FLANGE BACK LENGTH | FB 5.20 mm |
| FIELD OF VIEW (DIAGONAL) | D:160°H 120°V 60° |
| OPTICAL DISTORTION (DIAGONAL) | ＜-78% |
| Thread Size | M12*P0.5 |
| Element | 6G+IR |
· Name: Lens
· Brand: GTD
· Material: Glass
· Uses: digital products, such as sports DV, aerial photo, panorama camera, recorder for law enforcement, AR/VR etc; and industrial products, such as smart iris recognition for machine, scanner, laser instruments and instruments widely used in optical field.
PRODUCTION PROCESS
1 check and clean materials
2.assemble bottom lens/spacer
3 assemble middle lens/spacer
4 waterproof rubber ring
5 assemble top lens
6 lock lid
7 profile check
8 surface check
9 gelling UV glue
10 solidify UV glue
11 waterproof test(air tightness test)
12 vibration test
13 clean surface dust cap
14 stick IR
15 spot check finish product/warehouse if qualified
Company advantage
1. Optical industry leader
2. Large size, with many subsidiaries
3. Good service
4. R & d, production, sales in one enterprise, professional
5. Low price and fast delivery.
